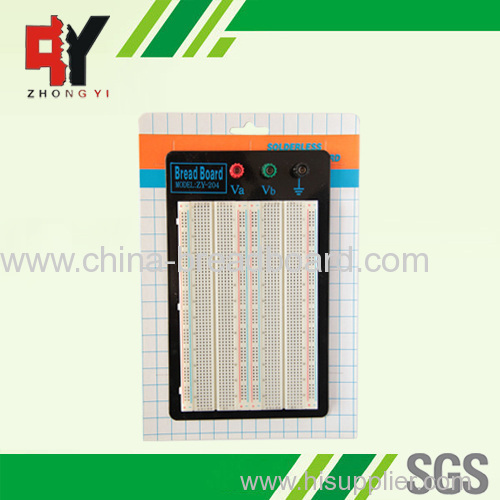

two prototype breadboard combined ZY-204

Payment Terms: T/T,WU;PAYPAL
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: ZY-204
Production Capacity: 1500000
Delivery Date: 0-3 day after payment
plate size(cm): 21.3*13*0.12
4 Distribution Strips: Tie-point 400
Contact Resistance: 100mΩmax
Dielectric withstanding Voltage: AC 500V For 1 minute
Package: skin package
Means of Transport: Ocean,Land,Air;DHL
Packing: carton box
board size(cm): 16.6*10.8*0.85
2 Terminal Strips:: Tie-point 1260
Binding Posts: 3 pieces
Insulator Resistance: 1000Mωmin.@DC 500V
Contact way: spring clip

board size(cm): 16.6*10.8*0.85
plate size(cm): 21.3*13*0.12
combined by two full size breadboard
ROHS compliance

Product Name: 1660 points solderless breadboard
      board size(cm): 16.6*10.8*0.85
      plate size(cm): 21.3*13*0.12
      2 Terminal Strips, Tie-point 1260;
      4 Distribution Strip,Tie-point 400;
      3 Binding Posts;
      Paper Box;
      1pc/ set

ABS plastic material
Completely reusable
Coloured coordinates for easy component placement
Accepts a variety of wrie sizes(AWG:20-29)

ZY-204 - - 1660 points solderless breadboard

ZY-204 - - 1660 points solderless breadboard

2 single breadboards are connected, then fixed by a metal plate. This middle breadboard are suitable for small electronic breadboard.

ZY-204 - - 1660 points solderless breadboard

Each 5 rows, there is a number to show which row it is. So that you can find a position easilly. And on the left and right side, there is bus line. It is connected all the whole line, not only 5 holes connected.

ZY-204 - - 1660 points solderless breadboard

The hole is square. Inside the holes, it is spring clip. It is flexible. It accepts the electronic components which the pin is between AWG 20 and AWG 29. And the inside metal is with good quality. It can bear being inserted many times.

ZY-204 - - 1660 points solderless breadboard

ZY-204 - - 1660 points solderless breadboard

Generally, we adopt carton package. Of course, according to different shipping way and condition, we will take special measure. This you can rest assured. Below is the packing information.

Item No.G.W. (KG)N.W. (KG)Quantity (pcs)Measurement (cm)
ZY-2041817505*34*30

ZY-204 - - 1660 points solderless breadboard

* We are manufacturer. Our factory accepts ODM and OEM. The engineer will help do the design as you require. Of course, if you send us the drawing, it is appreciated.

* If you need your own logo put on the product, we can do it. Only send us the logo, that is ok.

* If you need you own package, we can help make the package. And if you send us the package, that is also ok.
